Multi Grab
Multi Grab
IMG S, IMG D, IMG H, IMG L, IMG T series
The great handling, the compatibility of the saddle with other Indeco products, the efficiency of the hydraulic system that ensures maximum precision in operations and very low operating costs, are further qualities that make Indeco IMG calipers safe and reliable partners.
|

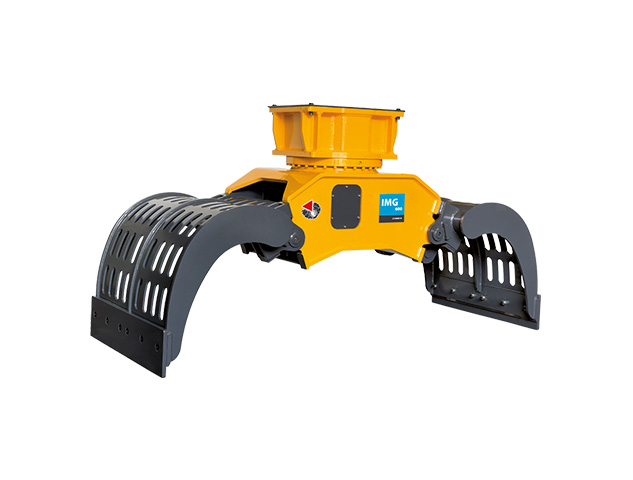

MULTI GRAB S
IMG 400
 |
|
|---|---|
| Excavator weight (possible) | 3 ÷ 10 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 30 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 3000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 380 kg |
| Load capacity | 190 l |
| Gripper width | 900 mm |
| Maximum opening | 1500 mm |
| Depth | 600 mm |
|
Type of machines
|
|
|
MULTI GRAB S
IMG 600
|
|
|---|---|
| Excavator weight (possible) | 5 ÷ 16 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 50 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 4000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 570 kg |
| Load capacity | 320 l |
| Gripper width | 1070 mm |
| Maximum opening | 1700 mm |
| Depth | 700 mm |
|
Type of machines
|
|
|
MULTI GRAB S
IMG 1200
|
|
|---|---|
| Excavator weight (possible) | 12 ÷ 22 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 70 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 6000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1140 kg |
| Load capacity | 620 l |
| Gripper width | 1300 mm |
| Maximum opening | 2200 mm |
| Depth | 900 mm |
|
Type of machines
|
|
|
MULTI GRAB S
IMG 1700
|
|
|---|---|
| Excavator weight (possible) | 17 ÷ 30 tons |
| Max pressure to the cylinder | 320 bar |
| Max oil flow to the cylinder | 80 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 7000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1610 kg |
| Load capacity | 900 l |
| Gripper width | 1470 mm |
| Maximum opening | 2500 mm |
| Depth | 1000 mm |
|
Type of machines
|
|
|
MULTI GRAB S
IMG 2300
|
|
|---|---|
| Excavator weight (possible) | 22 ÷ 40 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 130 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 10000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2180 kg |
| Load capacity | 1350 l |
| Gripper width | 1630 mm |
| Maximum opening | 2700 mm |
| Depth | 1100 mm |
|
Type of machines
|
|
|
MULTI GRAB S
IMG 2800
|
|
|---|---|
| Excavator weight (possible) | 26 ÷ 50 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 160 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2650 kg |
| Load capacity | 1700 l |
| Gripper width | 1750 mm |
| Maximum opening | 3000 mm |
| Depth | 1200 mm |
|
Type of machines
|
|
|

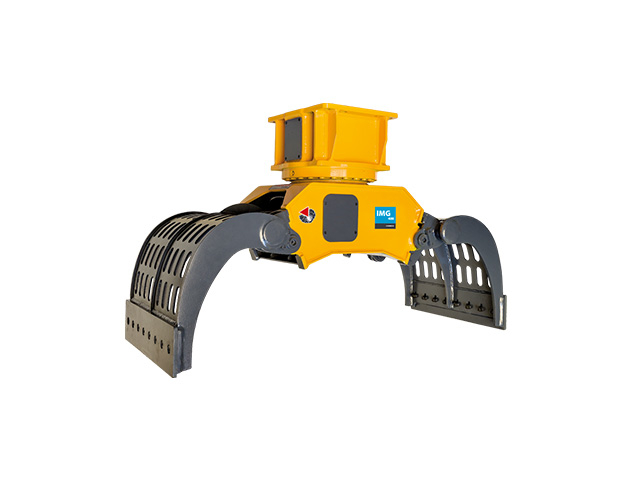

MULTI GRAB D
IMG 400
|
|
|---|---|
| Excavator weight (possible) | 3 ÷ 10 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 30 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 3000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 400 kg |
| Load capacity | 190 l |
| Maximum opening | 1500 mm |
| Depth | 600 mm |
|
Type of machines
|
|
|
MULTI GRAB D
IMG 600
|
|
|---|---|
| Excavator weight (possible) | 5 ÷ 16 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 50 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 4000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 600 kg |
| Load capacity | 320 l |
| Maximum opening | 1700 mm |
| Depth | 700 mm |
|
Type of machines
|
|
|
MULTI GRAB D
IMG 1200
|
|
|---|---|
| Excavator weight (possible) | 12 ÷ 22 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 70 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 6000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1200 kg |
| Load capacity | 620 l |
| Maximum opening | 2200 mm |
| Depth | 900 mm |
|
Type of machines
|
|
|
MULTI GRAB D
IMG 1700
|
|
|---|---|
| Excavator weight (possible) | 17 ÷ 30 tons |
| Max pressure to the cylinder | 320 bar |
| Max oil flow to the cylinder | 80 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 7000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1700 kg |
| Load capacity | 900 l |
| Maximum opening | 2500 mm |
| Depth | 1000 mm |
|
Type of machines
|
|
|
MULTI GRAB D
IMG 2300
|
|
|---|---|
| Excavator weight (possible) | 22 ÷ 40 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 130 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2300 kg |
| Load capacity | 1350 l |
| Maximum opening | 2700 mm |
| Depth | 1100 mm |
|
Type of machines
|
|
|
MULTI GRAB D
IMG 2800
|
|
|---|---|
| Excavator weight (possible) | 26 ÷ 50 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 160 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2800 kg |
| Load capacity | 1700 l |
| Maximum opening | 3000 mm |
| Depth | 1200 mm |
|
Type of machines
|
|
|

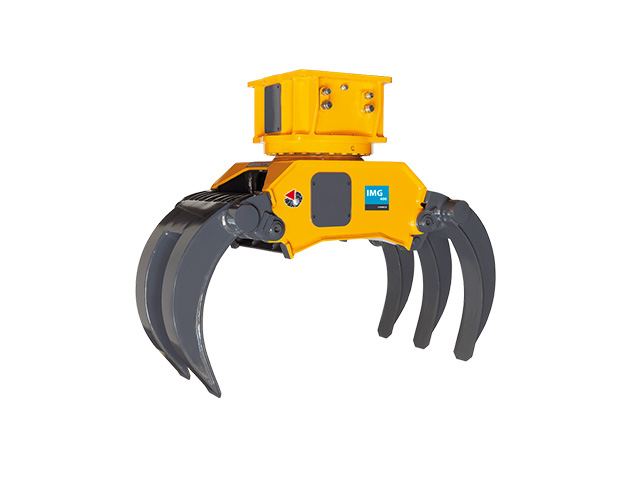

MULTI GRAB H
IMG 400
|
|
|---|---|
| Excavator weight (possible) | 3 ÷ 10 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 30 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 3000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 425 kg |
| Maximum opening | 930 mm |
| Depth | 570 mm |
|
Type of machines
|
|
|
MULTI GRAB H
IMG 600
|
|
|---|---|
| Excavator weight (possible) | 5 ÷ 16 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 50 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 4000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 640 kg |
| Maximum opening | 1085 mm |
| Depth | 660 mm |
|
Type of machines
|
|
|
MULTI GRAB H
IMG 1200
|
|
|---|---|
| Excavator weight (possible) | 12 ÷ 22 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 70 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 6000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1280 kg |
| Maximum opening | 1360 mm |
| Depth | 830 mm |
|
Type of machines
|
|
|
MULTI GRAB H
IMG 1700
|
|
|---|---|
| Excavator weight (possible) | 17 ÷ 30 tons |
| Max pressure to the cylinder | 320 bar |
| Max oil flow to the cylinder | 80 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 7000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1800 kg |
| Maximum opening | 1550 mm |
| Depth | 950 mm |
|
Type of machines
|
|
|
MULTI GRAB H
IMG 2300
|
|
|---|---|
| Excavator weight (possible) | 22 ÷ 40 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 130 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2450 kg |
| Maximum opening | 1710 mm |
| Depth | 1050 mm |
|
Type of machines
|
|
|
MULTI GRAB H
IMG 2800
|
|
|---|---|
| Excavator weight (possible) | 26 ÷ 50 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 160 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2990 kg |
| Maximum opening | 1840 mm |
| Depth | 1130 mm |
|
Type of machines
|
|
|
MULTI GRAB L
IMG 400
|
|
|---|---|
| Excavator weight (possible) | 3 ÷ 10 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 30 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 3000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 415 kg |
| Load capacity | 190 l |
| Maximum opening | 1500 mm |
| Depth | 600 mm |
|
Type of machines
|
|
|
MULTI GRAB L
IMG 600
|
|
|---|---|
| Excavator weight (possible) | 5 ÷ 16 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 50 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 4000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 630 kg |
| Load capacity | 320 l |
| Maximum opening | 1700 mm |
| Depth | 700 mm |
|
Type of machines
|
|
|
MULTI GRAB L
IMG 1200
|
|
|---|---|
| Excavator weight (possible) | 12 ÷ 22 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 70 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 6000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1250 kg |
| Load capacity | 620 l |
| Maximum opening | 2200 mm |
| Depth | 900 mm |
|
Type of machines
|
|
|
MULTI GRAB L
IMG 1700
|
|
|---|---|
| Excavator weight (possible) | 17 ÷ 30 tons |
| Max pressure to the cylinder | 320 bar |
| Max oil flow to the cylinder | 80 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 7000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1780 kg |
| Load capacity | 900 l |
| Maximum opening | 2500 mm |
| Depth | 1000 mm |
|
Type of machines
|
|
|
MULTI GRAB L
IMG 2300
|
|
|---|---|
| Excavator weight (possible) | 22 ÷ 40 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 130 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2400 kg |
| Load capacity | 1350 l |
| Maximum opening | 2700 mm |
| Depth | 1100 mm |
|
Type of machines
|
|
|
MULTI GRAB L
IMG 2800
|
|
|---|---|
| Excavator weight (possible) | 26 ÷ 50 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 160 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2930 kg |
| Load capacity | 1700 l |
| Maximum opening | 3000 mm |
| Depth | 1200 mm |
|
Type of machines
|
|
|
MULTI GRAB T
IMG 400
|
|
|---|---|
| Excavator weight (possible) | 3 ÷ 10 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 30 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 3000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 425 kg |
| Maximum opening | 930 mm |
| Depth | 570 mm |
|
Type of machines
|
|
|
MULTI GRAB T
IMG 600
|
|
|---|---|
| Excavator weight (possible) | 5 ÷ 16 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 50 l / min |
| Hydraulic cylinder connections | 1/2 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 10 l / min |
| Rotation hydraulic connections | 3/8 " |
| Maximum force to the blade / teeth | 4000 kg |
| Breaker attachment compatibility | HP 900 |
| SORTING JAWS | |
| Equipment operating weight * | 640 kg |
| Maximum opening | 1085 mm |
| Depth | 660 mm |
|
Type of machines
|
|
|
MULTI GRAB T
IMG 1200
|
|
|---|---|
| Excavator weight (possible) | 12 ÷ 22 tons |
| Max pressure to the cylinder | 300 bar |
| Max oil flow to the cylinder | 70 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 100 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 6000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1280 kg |
| Maximum opening | 1360 mm |
| Depth | 830 mm |
|
Type of machines
|
|
|
MULTI GRAB T
IMG 1700
|
|
|---|---|
| Excavator weight (possible) | 17 ÷ 30 tons |
| Max pressure to the cylinder | 320 bar |
| Max oil flow to the cylinder | 80 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 20 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 7000 kg |
| Breaker attachment compatibility | HP 2000 - HP 2500 |
| SORTING JAWS | |
| Equipment operating weight * | 1800 kg |
| Maximum opening | 1550 mm |
| Depth | 950 mm |
|
Type of machines
|
|
|
MULTI GRAB T
IMG 2300
|
|
|---|---|
| Excavator weight (possible) | 22 ÷ 40 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 130 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2450 kg |
| Maximum opening | 1710 mm |
| Depth | 1050 mm |
|
Type of machines
|
|
|
MULTI GRAB T
IMG 2800
|
|
|---|---|
| Excavator weight (possible) | 26 ÷ 50 tons |
| Max pressure to the cylinder | 350 bar |
| Max oil flow to the cylinder | 160 l / min |
| Hydraulic cylinder connections | 3/4 " |
| Max rotation pressure | 110 Bar |
| Max rotation oil flow | 30 l / min |
| Rotation hydraulic connections | 1/2 " |
| Maximum force to the blade / teeth | 12000 kg |
| Breaker attachment compatibility | HP 3000 ÷ HP 4000 |
| SORTING JAWS | |
| Equipment operating weight * | 2990 kg |
| Maximum opening | 1840 mm |
| Depth | 1130 mm |
|
Type of machines
|
|
